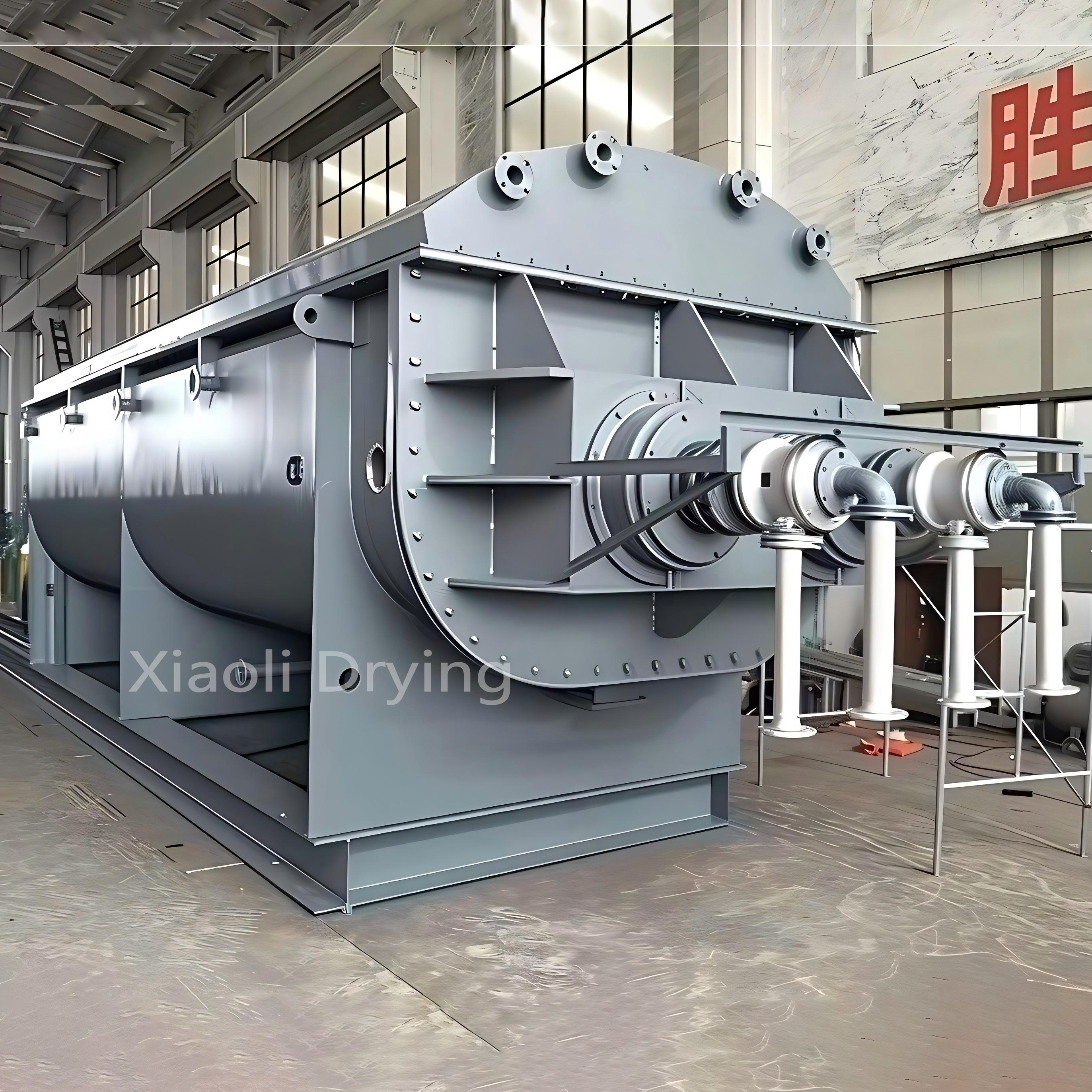

The KJG-73 Hollow Paddle Dryer delivers precise control and highly efficient drying performance for demanding industrial use applications. With 73 m² heat transfer area, 5.78 m³ effective volume, 5-15 r.p.m precision speed control, and 55 kW drive, it represents the pinnacle of large-scale industrial indirect drying technology.
| Model | KJG-73 Hollow Paddle Dryer |
| Heat Transfer Area | 73 m² |
| Effective Volume | 5.78 m³ |
| Revolution | 5-15 r.p.m |
| Power | 55 kW |
| Width of Dryer Body (A) | 1,828 mm |
| Total Width (B) | 2,286 mm |
| Length of Dryer Body (C) | 5,461 mm |
| Total Length (D) | 9,119 mm |
| Distance Inlet to Discharge (E) | 5,004 mm |
| Height in Center (F) | 1,220 mm |
| Total Height (G) | 2,464 mm |
| Steam Inlet (N) | (2) 1-1/2" |
| Water Outlet (O) | (2) 1-1/2" |
The KJG-73 delivers precise control and highly efficient performance for large-scale industrial use. Typical applications include: bulk chemical intermediate and specialty chemical drying, large-volume mineral concentrate processing, industrial-scale fertilizer granule drying, high-capacity food ingredient powder processing, biomass and biofuel feedstock drying, and industrial waste volume reduction. The precise control system ensures consistent product quality even at maximum production volumes.
The KJG-73 combines precise control with highly efficient drying performance for the most demanding industrial use applications. With 73 m² heat transfer area and 55 kW drive, it is the flagship large-scale indirect drying solution for manufacturers requiring maximum capacity, precision, and reliability.
