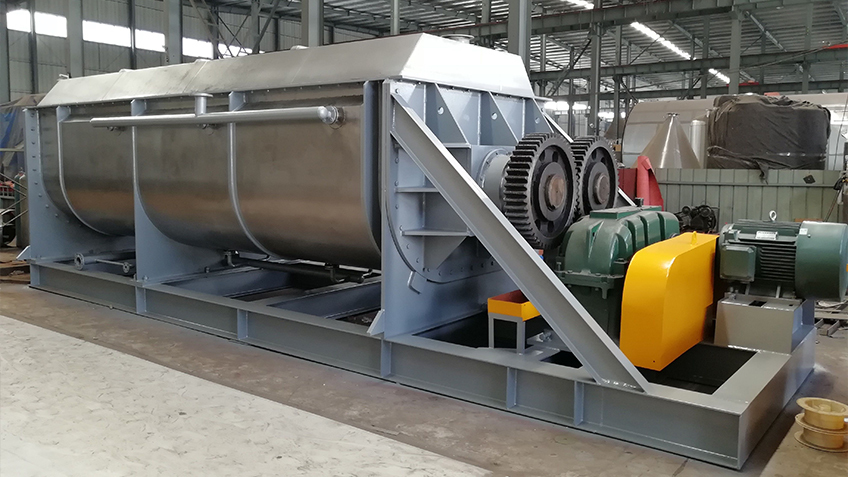

The KJG-48 Hollow Paddle Dryer is a high performance advanced industrial drying solution engineered for light industry materials processing. With 48 m² heat transfer area, 3.54 m³ effective volume, and 30 kW drive system, it delivers exceptional throughput and efficiency for large-scale light industrial production.
| Model | KJG-48 Hollow Paddle Dryer |
| Heat Transfer Area | 48 m² |
| Effective Volume | 3.54 m³ |
| Revolution | 10-20 r.p.m |
| Power | 30 kW |
| Width of Dryer Body (A) | 1,474 mm |
| Total Width (B) | 1,854 mm |
| Length of Dryer Body (C) | 4,724 mm |
| Total Length (D) | 7,772 mm |
| Distance Inlet to Discharge (E) | 4,420 mm |
| Height in Center (F) | 1,066 mm |
| Total Height (G) | 2,032 mm |
| Steam Inlet (N) | (2) 1-1/2" |
| Water Outlet (O) | (2) 1-1/2" |
The KJG-48 delivers high performance drying for light industry materials across diverse sectors. Typical applications include: textile fiber and fabric processing by-product drying, paper and pulp industry sludge dewatering, light chemical powder and granular material processing, detergent and cleaning product ingredient drying, food processing by-product recovery, and biomass and agricultural light material drying. The advanced design ensures consistent quality for light industrial products requiring precise moisture control.
The KJG-48 combines high performance hollow paddle technology with an advanced control system for demanding light industry materials processing at scale. With 48 m² heat transfer area and 3.54 m³ capacity, it is the definitive large-volume choice for light industry manufacturers requiring maximum throughput and processing flexibility.
