Stainless Vibrating Fluidized Bed Dryer For Fragile And Irregular Granular Materials


Stainless Vibrating Fluidized Bed Dryer For Fragile And Irregular Granular Materials

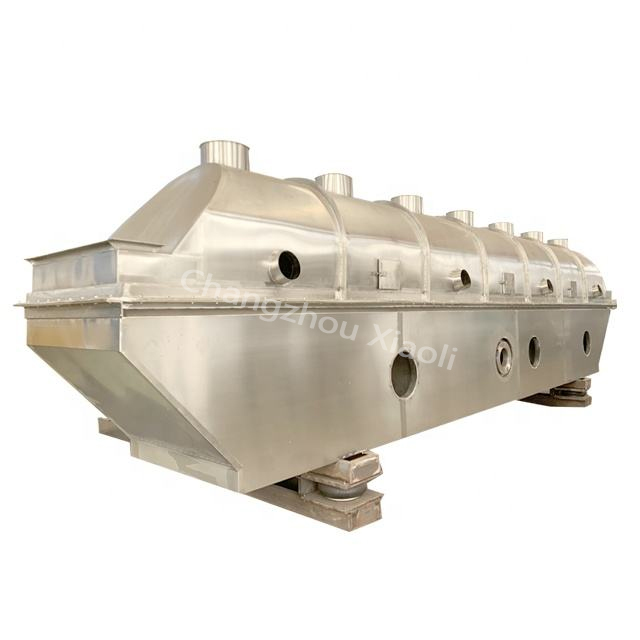

 The ZLG Series Stainless Steel Vibrating Fluidized Bed Dryer is a precision-engineered thermal processing system specifically designed for industries that handle delicate, high-value, or geometrically complex particulates. By utilizing synchronized vibration technology, this equipment ensures efficient drying and cooling while maintaining the structural integrity of fragile materials and ensuring uniform fluidization for irregularly shaped granules.

Working Principle

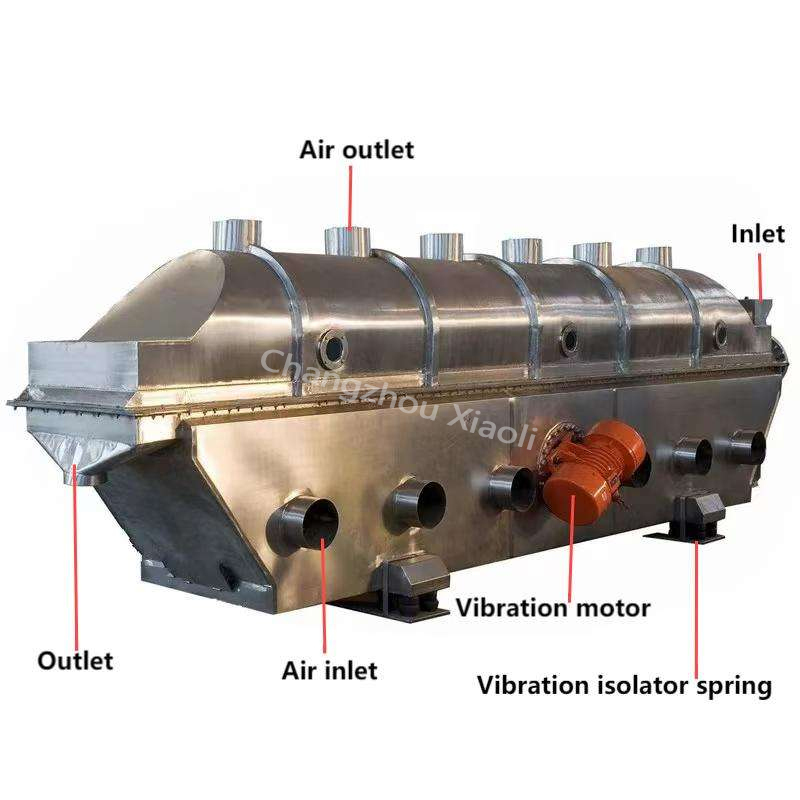

Material is fed into the machine via the inlet and moves forward continuously along the horizontal fluidized bed surface under the influence of precisely tuned vibration force. Hot air is forced upward through the perforated fluid bed, making direct contact with the wet material. This process facilitates rapid heat and mass transfer. The moisture-laden air is purified through a cyclone separator before being exhausted, while the dried product is discharged through the outlet.

Engineered for Material Integrity

Traditional drying methods often lead to particle attrition or surface damage due to aggressive mechanical agitation. The ZLG series solves this by using a "throwing" motion induced by dual vibration motors. The material moves forward in a semi-suspended state, significantly reducing friction and impact, which preserves the crystal form and surface quality of the product.

Core Technical Advantages

• Gentle & Damage-Free Transport: The vibration-driven fluidized state is exceptionally gentle, making it the premier choice for seeds, sugar, citric acid, and pharmaceutical crystals.

• Uniform Fluidization for Irregular Shapes: Even for materials with inconsistent particle size or non-spherical shapes, the vibration assistance prevents "dead zones" and "channeling," ensuring every granule achieves consistent final moisture content.

• Premium SUS304/316L Construction: Built entirely from high-grade stainless steel with a mirror-polished internal finish ($Ra < 0.4mu m$). The system is corrosion-resistant, easy to clean, and fully compliant with GMP and food safety standards.

• High Thermal Efficiency & Energy Saving: The optimized contact between hot air and the fluidized material results in high heat transfer rates, saving 30%–60% in energy costs compared to standard drying units.

• Stepless Precision Adjustment: Operators can perform stepless regulation of the bed thickness, material residence time, and vibration amplitude to suit specific production requirements.

• Fully Enclosed Clean Operation: The airtight design prevents cross-contamination and dust leakage, ensuring a safe and hygienic industrial environment.

Technical Specifications (ZLG Series)

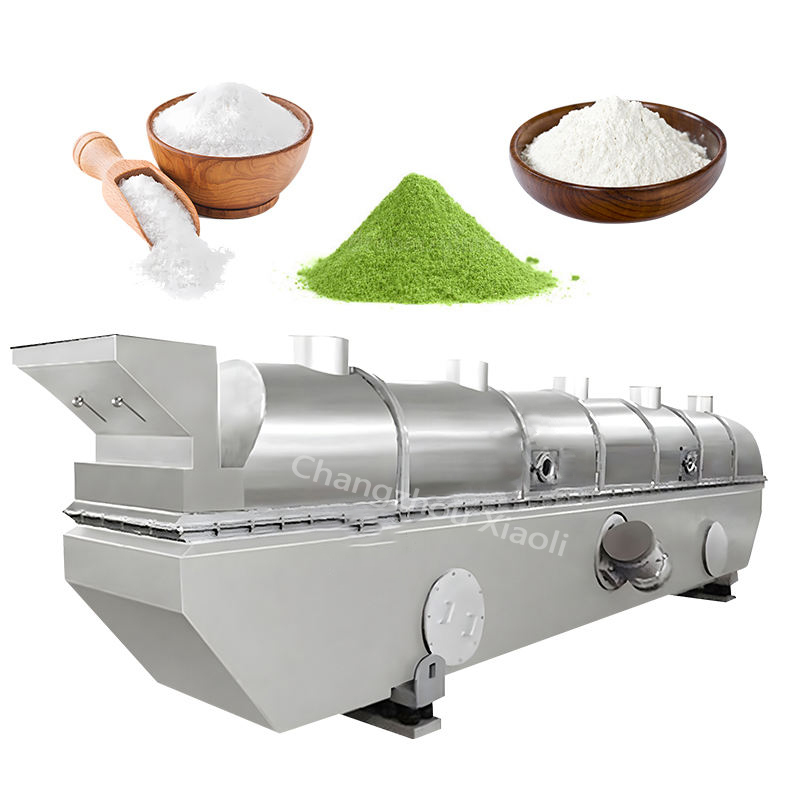

Industrial Applications

• Food & Agriculture: Sugar, salt, sesame seeds, MSG, dehydrated vegetables (e.g., radish shreds), and soy meal.

• Chemicals & Pharmaceuticals: Citric acid, borax, ammonium sulfate, compound fertilizers, and crystalline intermediates.

• Minerals & Industrial: Slag, irregular metal powders, and ceramic precursors.

Why Choose Xiaoli Drying Solutions?

Changzhou Xiaoli Drying Equipment Co., Ltd. is a specialist in fluidization dynamics. We understand that for fragile and irregular materials, the balance between throughput and product protection is vital. Our ZLG series provides a stable, low-maintenance, and highly efficient solution that maximizes your product quality and operational ROI.
